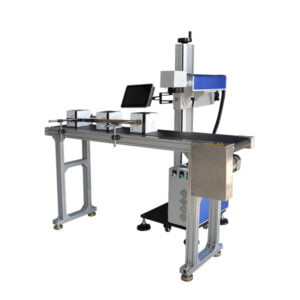

Automatic Laser Marking Machine With Conveyor Belt

1. Model no.: ZE-FL4
2. Laser type: fiber laser
3. Laser power: 20watt(optional)
4. Marking area: 110x110mm
5. Payment: T/T(optional)
6. Application: all Metals, bearing, stainless steel, pvc pipe, etc.

Machine Details

Automatic laser marking machine

Automatic Laser Marking Machine With Conveyor Belt Features:

1. Air Condition Control System: More efficient in temperature control,ensure the machine running smoothly.
2. Easy Operation: Complete Training video and manual, 24 hours online service
3. Long Service Life: 10 years long lifetime, 100000 hours working life without maintenance
4. High Precision: Re-position precision is 0.001 mm
5. Air Cooling System: Adopts Air Cooling,better cooling effect than other cooling method
6. Different Printing Format:Including text,graphic,pictures,serial number,bar codes.
7. Top quality and easy operation by touch screen


Top brand fiber laser source:

1. The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus/ Jpt/ Max are all the industrial marking and micromachining laser.
2. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter.
3.It can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude.

High speed galvo laser head

1. Sino-galvo high-speed galvanometer scanner.
2. Professional and long life time.
3. With more precision for laser beam
4. Two red dots for easier focus

High light transmittance optical lens

1. High light transmittance optical lens
2. With different size from 70x70mm ~300x300mm.
3. wavelength or other brand


Ezcad control board and software

1. EzCad Card enables real-time control of scan system and lasers over a standard USB host interface.
2. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities.
3. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications.
4. It can load marking file via a removable MMC memory card.

Technical parameters:

Model: ZE-FL4
Marking scope: 110*110mm(optional)
Laser Power: 20W(Optional)
Laser sources: Raycus Fiber laser generator
Laser Head: High speed digital scanner head
Software: EZCAD2.0, Touch screen system
Wave length of laser: 1064nm
Minimal character: 0.001mm
Marking speed: 7000mm/s
Support format: PLT, BMP, DXF, JPG, TIF, AI etc
Power supply: Taiwan MW
Power supply: 110V/220V/ 50Hz/2kVA
Process Material: All kinds of metals and part of Non-metal Materials
Cooling ways: Inner Installed-air Cooling


Application Samples:

1. It can be carved metal and a variety of non-metallic materials.
2. Used in automobiles, motorcycles, auto parts, electronic components, integrated circuits (IC), mobile communications, hardware tools.
3. Marking watches, glasses, jewelry accessories, plastic buttons, building materials, PVC pipe, medical equipment and other industries.
4. Now widely used in tobacco industry, biological medicine, wine, food and beverage, health care products, electronic industry.


1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one


Package And Shipping:

1. Inner package: waterproof plastic transparent film
2. Middle package: white foam, to protect the machine from shaking
3. Outside package: wooded case free of fumigation
4. According to different customer needs,we could send the cargo by air, sea,and railways
5. The delivery lead time would be 3-5 days
