Fiber Laser Marking Machine Suppliers Table Top Design

translator

Double-click

Select to translate



1. Model no.: ZE-FL2
2. Laser type: fiber laser
3. Software: Ezcad
4. Cooling: air cooled
5. Payment: T/T(optional)
6. Application: all metals and some hard plastic, etc.

Product Description

translator

Double-click

Select to translate



Fiber Laser Marking Machine Suppliers

Fiber Laser Marking Machine Suppliers Table Top Design Features:

1. Fiber laser marking machine suppliers can adjust the height.
2. Adapt to marking objects of different height.
3. This black handle can be folded for easy carrying.
4. Fiber laser marker can have a variety of plugs, such as EU, UK and US .
5. The black channel has yellow optical fiber cable, which is the uniqueness of this product.
6. The red and green buttons below are the power buttons.
7. This part is the field len of optical Fiber laser marking machine.

Technical Parameters:

Laser wavelength 1064nm
laser power 20W or 30W or 50W
Laser type Pulse or continuous
Marking depth Up to 0.5mm depending on material
Marking speed ≤7000mm/s
Minimum characters 0.15mm
Minimum line width 0.012mm
Repeatability ±0.002
Marking range Standard configuration: 100mmx100mm
Operating life Laser operation > 100000 hours
External dimension 450 mm x 540 mm x 800 mm weight 25 kg
Worktop 320 mm x 200 mm 30 kg
Lifting height Lifting 550, printable workpiece height less than 280mm.
Cooling system Built in air cooling
operating system WinXP/Win7
Graphic conversion Provide CAD, CorelDRAW, CAXA file conversion
Use environment Temperature: – 20 ° C- 45 ° C, relative humidity 80%

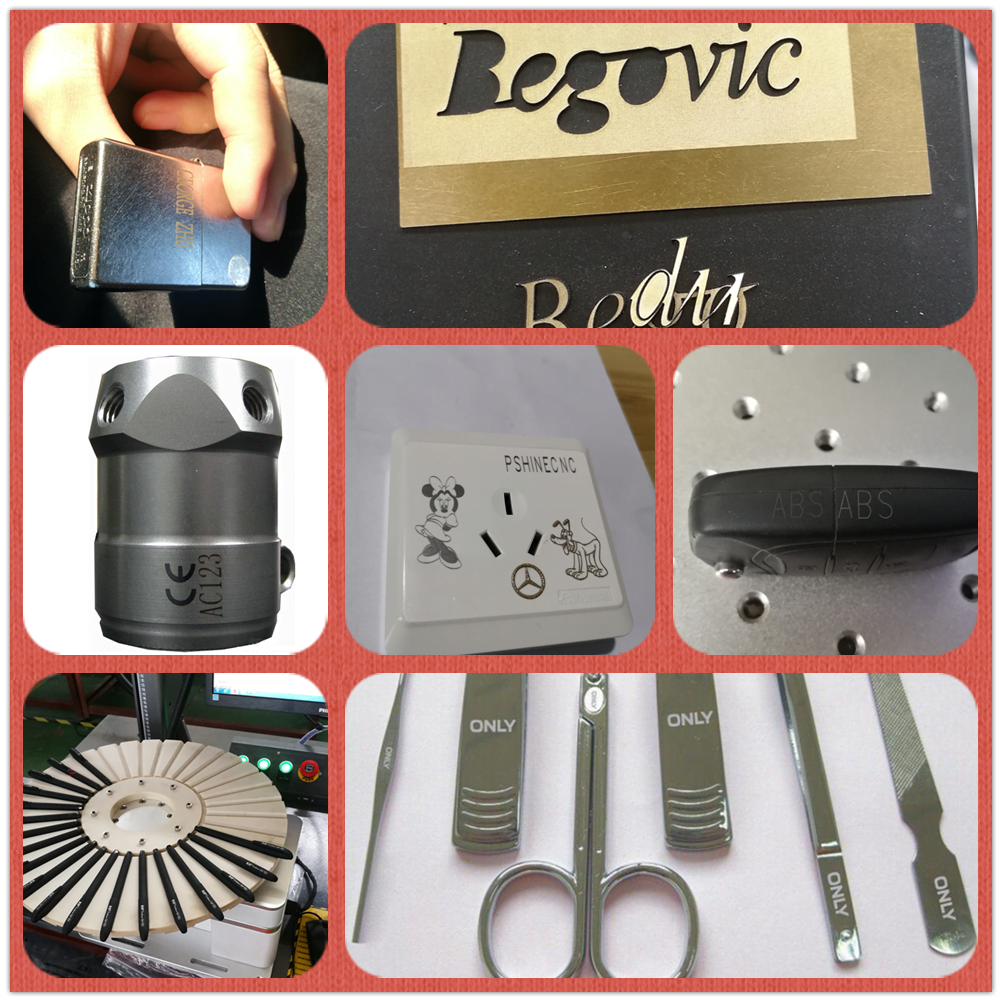

Machine detail pictures and accessories image:

Fiber Laser Marking Machine Suppliers Fiber Laser Marking Machine Suppliers

Fiber Laser Marking Machine Suppliers

Applicable Industries:

Computer keyboards,
Precision instruments,
Auto parts,
Medical equipment ,
Bathroom equipment,
Hardware tools,
Luggage decoration,
Electronic components,
Home appliances,
Industrial bearings, and other vairous industrial



FAQs:

1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one



Package And Shipping:

1. Inner package: waterproof plastic transparent film
2. Middle package: white foam, to protect the machine from shaking
3. Outside package: wooded case free of fumigation
4. According to different customer needs,we could send the cargo by air, sea,and railways
5. The delivery lead time would be 3-5 days

Laser-marking-machine-packing-details
