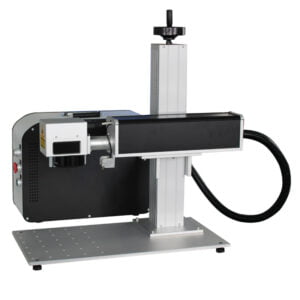

Fiber Optic Laser Engraver Split Portable Design
1. Model no.: ZE-FL1
2. Lens: wavelength
3. Laser power: 30watt
4. Cooling: air cooled
5. Payment: T/T(optional)
6. Application: brass, all other Metals, stainless steel, etc.
Fiber Optic Laser Engraver Split Portable Design Features
1. Small size, easy to transport and save transportation cost.
2. Raycus laser quickly mark black in stainless steel, faster than ordinary laser.
3. The laser can be added the rotary attachment, smoke filter device.
4. large adjustable frequency range.
5. Suitable for engraving all metal materials and some plastic materials.
Model : ZE-FL1
Laser power : 20W(optional)
Laser Type : fiber laser q-switched
Laser Wavelength : 1064nm
Standard Marking Area :110mmx110mm(optional)
Marking Depth : ≤0.2mm
Marking Linear Speed : ≤7000mm/s
Minimum Linear Width : 0.01mm
Minimum Character : 0.15mm
Operating System : WINDOWS 98/2000/XP/VISTA/7/8/10
Repeat Positioning Accuracy : ±0.002mm
Software : EZCAD2.0
Rated Power : 500W
Graphic format supported : PLT, PCX, DXF, BMP, AI, etc.
Operating Voltage : 110V/220V
Cooling mode : Air cooling
Split type, long life time for this portable fiber laser marking machine
Top brand fiber laser source:
1. The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus/ Jpt/ Max are all the industrial marking and micromachining laser.
2. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter.
3.It can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude.
High speed galvo laser head
1. Sino-galvo high-speed galvanometer scanner.
2. Professional and long life time.
3. With more precision for laser beam
4. Two red dots for easier focus
High light transmittance optical lens
1. High light transmittance optical lens
2. With different size from 70x70mm ~300x300mm.
3. wavelength or other brand
Ezcad control board and software
1. EzCad Card enables real-time control of scan system and lasers over a standard USB host interface.
2. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities.
3. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications.
4. It can load marking file via a removable MMC memory card.
1. Jewellery, Keyboards of cell phone, Auto parts, Electronic components,
2. Electronic appliance, Communication apparatus, sanitary wares, buckles,
3. Kitchenware, Sanitary equipment’s, Hardware tools,
4. Knife, Glasses, Clock, Cooker, Stainless steel products etc.
1. What if you don’t know how to use the machine?
We have a full set of teaching videos, start with a zero experience, also can provide training
through teamviewer or other software, video calling, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn
2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2 or 3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code
3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
Package And Shipping:
1. Inner package: waterproof plastic transparent film
2. Middle package: white foam, to protect the machine from shaking
3. Outside package: wooded case free of fumigation
4. According to different customer needs,we could send the cargo by air, sea,and railways
5. The delivery lead time would be 3-5 days
