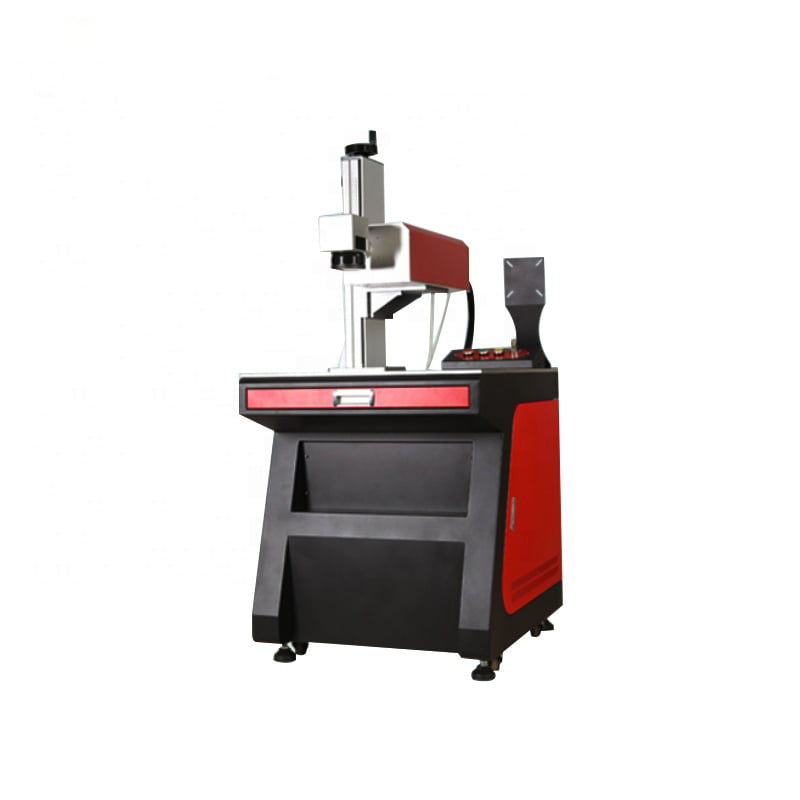

UV Laser Marking Machine Price 3W 5W 10W

1. Model no.: ZE-UV2
2. Laser type: 355nm uv laser
3. Laser power: 3watt, 5watt, 10watt
4. Software: ezcad
5. Payment: T/T(optional)
6. Application: bottles for cosmetics, pharmaceuticals, food, plastic, etc.

Machine Details

uv laser marking machine price

UV Laser Marking Machine Price 3W 5W 10W Features:

1. UV Laser Marking Machine Price is very small focusing spot and small processing heat-affected zone.
2. Ultraviolet laser marking machine has a wider range of materials suitable for processing besides copper.
3. Not only the beam quality is good, but also the focus spot is smaller, which can realize hyperfine marking.
4. The application scope is wider; the heat-affected area is very small, and there will be no heat effect and no material burning problem.
5. Fast marking speed, high efficiency, stable performance, small size, low power consumption and other advantages.

Machine details:

1. 355nm uv laser source
2. High speed galvo laser head
3. High light transmission lens
4. More stable water chiller


Technical parameters:

Model: ZE-UV2
Laser power: 3W, 5W, 10W
Wavelength: 355nm
Galvo head: high speed galvo head
Working area: 100x100mm(Optional)
Marking speed: <7000mm/s
Power consumtion: 600watt
Laser source: Gainlaser(optional)
Software: Ezcad
Interface: USB port
Computer: Lenovo
Water chiller: Included
Warranty: 1 year
Machine enclosure type: Floor type, Full enclosed cabinet type


Application samples:

1. The surfaces of bottles for cosmetics, pharmaceuticals, food and other high-molecular materials are marked with fine effects.
2. Better than ink coding and no pollution; flexible pcb board marking, dicing; silicon wafer micro hole, blind hole processing.
3. LCD liquid crystal glass two-dimensional code marking, glass surface punching, metal surface coating marking, Plastic buttons.
4. Electronic components, gifts, communications equipment, building materials, and so on.
5. It can mark / engrave logo, graphic, character, serial number, barcode, 2d code, numbers etc.
6. Cutting and drilling micro pore on thin layer fragile items.It can be combined with streamline for online marking.

Package And Shipping:

1. Inner package: waterproof plastic transparent film
2. Middle package: white foam, to protect the machine from shaking
3. Outside package: wooded case free of fumigation
4. According to different customer needs,we could send the cargo by air, sea,and railways
5. The delivery lead time would be 3-5 days


Q1. How to get the most suitable machine and best price?
As we may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Thus,Please tell us what’s material you want to cutting or engraving ?
And what’s MAX size of carved material ?
Then we will recommand the most suitable model and the best price for you.

Q2. Quality Control?
The whole production procedure will be under regular inspection and strict quality control.
The complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q3: How is the shipping method?
As per your actual address, we can effect shipment by sea, by air, by truck or railway.
Also we can send the machine to your office as per your requirement .

Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many other models, such as portable fiber laser marking machine, co2 laser marking machine, enclosed fiber laser marking machine,3D fiber laser marking macine, UV laser marking machine and so on.
